| 型号:CRST32F 通用继电器 |
| Dimensions:18.8X10.6X15.3mm |
| 触点形式:1A |
| 额定负载:5A/250VAC,5A/28VDC |
|
|
|
| |
|
|
|
特点 Features |
1,具有5A,10A切换能力: 5A,10A Switching capablilities.
2,触点形式 Contact arrangement: A: 1A; C: 1C
3,封装: S: 试水式; Z:防尘式 Enclosure: S:Sealed type; Z: Dust Cover
4,线圈额定电压 Coil rated voltage(V): DC:5,6,9,12,24
5,线圈功耗 Coil power consumption: L:0.2W; Nil:0.45W |
订货信息 Ordering information |
CRST32F--C-S-DC12V-L
1 2 3 4 5 |
1,型号 Part number: CRST4100 & CRST4101 2,触点形式 Contact arrangementC:1C
3,封装形式:S:试水式;无:防尘式 Enclosure: S:Sealed type; Z:Dust cover
4,线圈额定电压 Coil Rated voltage(V):DC:3,5,6,9,12,24
5,线圈功耗Coil power consumption:无Nil 0.2W(标准Standard);L:0.15W(高灵敏度High sensitivity) |
触点数据 Contact data |
触点形式 Contact Arrangement |
1A(SPST NO) 1C(1Z)(SPDT) |
触点材料 Contact Material |
Silver Alloy |
触点负载(阻性) Conatct Rating(Resistive) |
5A |
10A |
5A/250VAC;6A/120VAC
5A/28VDC |
10A/250VAC
10A/28VDC |
最大切换功率Max.Switching Power |
150W 1250VA |
最大切换电压 Max.Switching Voltage |
30VDC 277VAC 最大切换电流Max.Switching Current:10A |
触点阻性或压降 Contact Resistance or Voltage Drop |
≤100mΩ |
寿命 Operation Life |
电气 Electrical |
105 |
机械 Mechanical |
107 |
线圈参数 Coil Parameter |
线圈电压
Coil voltage
(VDC) |
线圈电阻
Coil Resistance
Ω±10% |
吸合电压VDC(最大)
Pick up Voltage VDC(Max)
(额定电压的75%)
(75% of rated voltage) |
释放电压VDC
Release voltage VDC(Min)
(额定电压的5%)
(5% of rated voltage) |
线圈功耗
Coil power consumption
(W) |
动作时间
Operate Time
(mS) |
释放时间
Release Time
(mS) |
额定
Rated |
最大
Max |
5 |
6.5 |
125 |
3.75 |
0.25 |
0.20 |
≤8 |
≤5 |
9 |
11.7 |
405 |
6.75 |
0.45 |
12 |
15.6 |
720 |
9.00 |
0.60 |
24 |
31.2 |
2880 |
18.0 |
1.20 |
5 |
6.5 |
56 |
3.75 |
0.25 |
0.45 |
9 |
11.7 |
180 |
6.75 |
0.45 |
12 |
15.6 |
320 |
9.00 |
0.60 |
24 |
31.2 |
1280 |
18.0 |
1.20 |
技术特性 Operation condition |
绝缘电阻 Insulation Resistance |
最少 1000MΩ min(at500V) |
介质耐压 Dielectric Strength
断开触点间 Between Contacts
触点与线圈间 Between Contacts and Coil |
50Hz 1000V
50Hz 2500V 4000V |
耐冲击 Shock Resistance |
100m/s2 11ms |
抗振性 Vibration Resistance |
10~55Hz 双振幅 Double amplitude 1.5mm |
引出端强度 Terminals Strength |
10N |
可焊性 Solderability |
230±2℃ 3±0.5s℃ |
环境温度 Ambient Temperature |
-40~70℃ |
相当湿度 Relative Humidity |
95%(at 35℃) |
质(重)量 Mass |
6g |

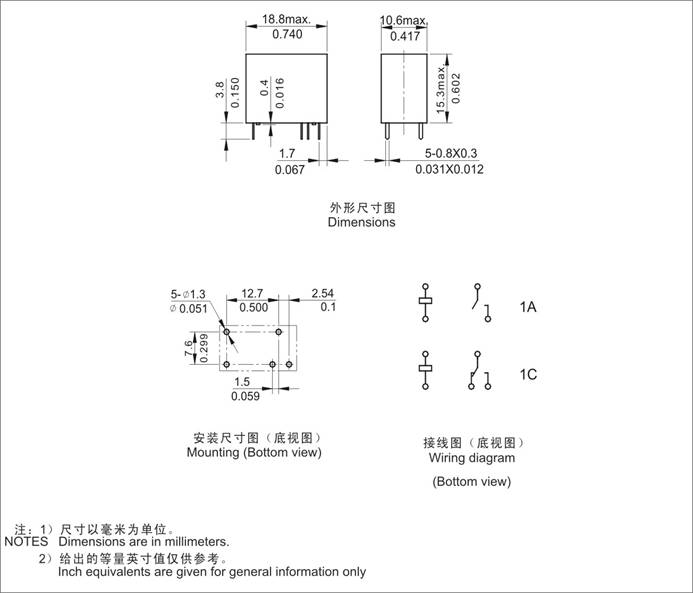

外形尺寸 Dimensions(mm/Inch) |
|
|
|
|
